UniFi is still often misclassified. Many see it primarily as a simple network platform for smaller environments. In practice, this is too short-sighted. Today, UniFi is a platform with a hybrid cloud architecture, local control plane, centralized cross-site management and high-availability modules for gateways, switches and access points. This is precisely why UniFi can be deployed in very different ways: from small sites with a deliberately lean architecture to highly redundant enterprise sites with multiple redundancy levels.
This is precisely the crucial point: there is no one UniFi deployment. Instead, there is a very flexible architecture kit that can be used to implement very different target images depending on protection requirements, site size, availability requirements and budget. And this is precisely the strength of the platform.
What companies often underestimate about UniFi
Anyone who only sees UniFi as a low-cost alternative to classic enterprise manufacturers underestimates the actual design freedom. The system is not fixed to a rigid reference architecture, but can be built very deliberately along real requirements: with a simple access layer for small branch offices, with redundant core architecture for main sites, with HA at the perimeter, with dual ISP, with 5G fallback, with cross-site SD-WAN coupling and with clean segmentation at WiFi, VLAN and policy level.
From an architectural perspective, this means that UniFi can be deliberately minimalist or deliberately highly available. This is exactly how modern infrastructure should be planned today - not with maximum complexity, but to suit the respective location.
The typical UniFi blueprint for critical or larger locations

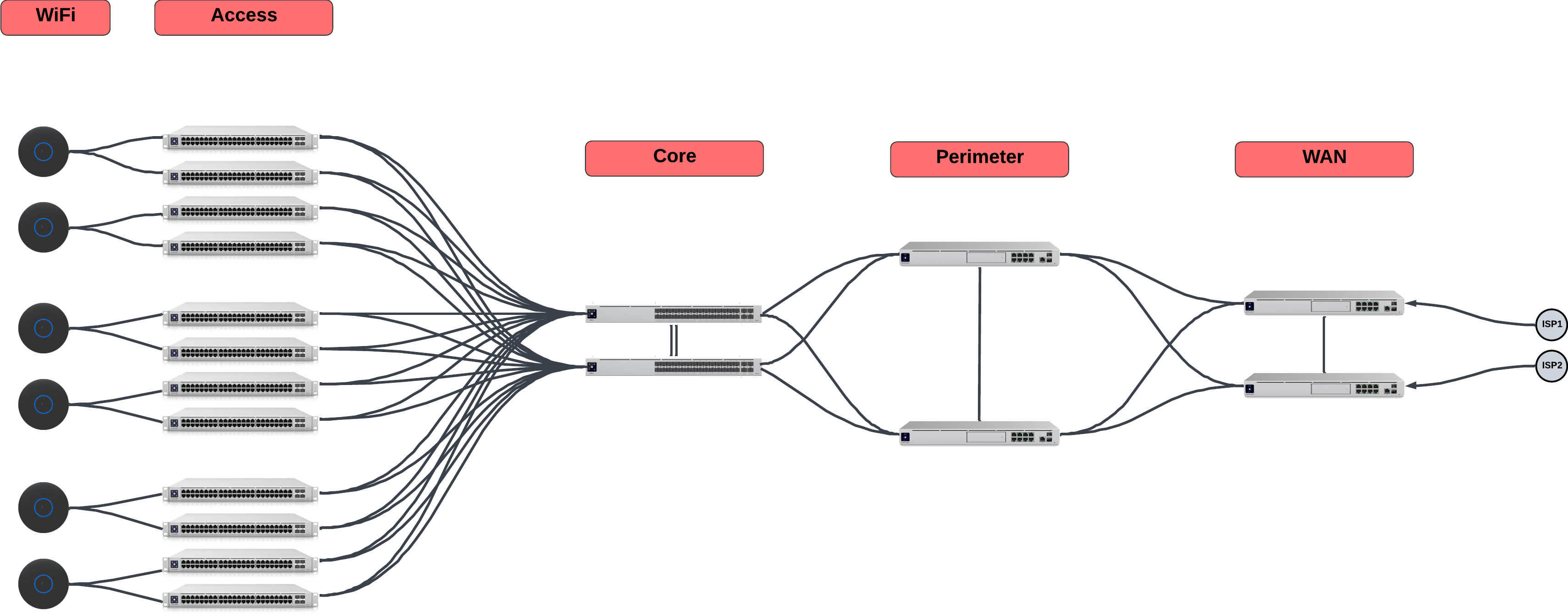

For main sites, campus environments, production sites or generally for sites with higher resilience requirements, UniFi is usually built with full redundancy. In this design, access points are not only connected to one access layer, but are distributed across several switches. The access switches are in turn redundantly connected to the core switches. The core switches are coupled with each other, an HA pair works at the perimeter and two providers are typically connected to the outside so that there is no unnecessary single point of failure on the WAN side.
The decisive factor here is not just "more hardware". The clean redundancy model is crucial: if an uplink, a switch, a gateway or a WAN fails, the site remains operational. This is the right school of thought, especially for companies with production-related processes, central applications, voice, OT dependencies or high site criticality. UniFi is not limited to small office operation here, but can be clearly trimmed for reliability on the design side.
The typical UniFi blueprint for smaller locations

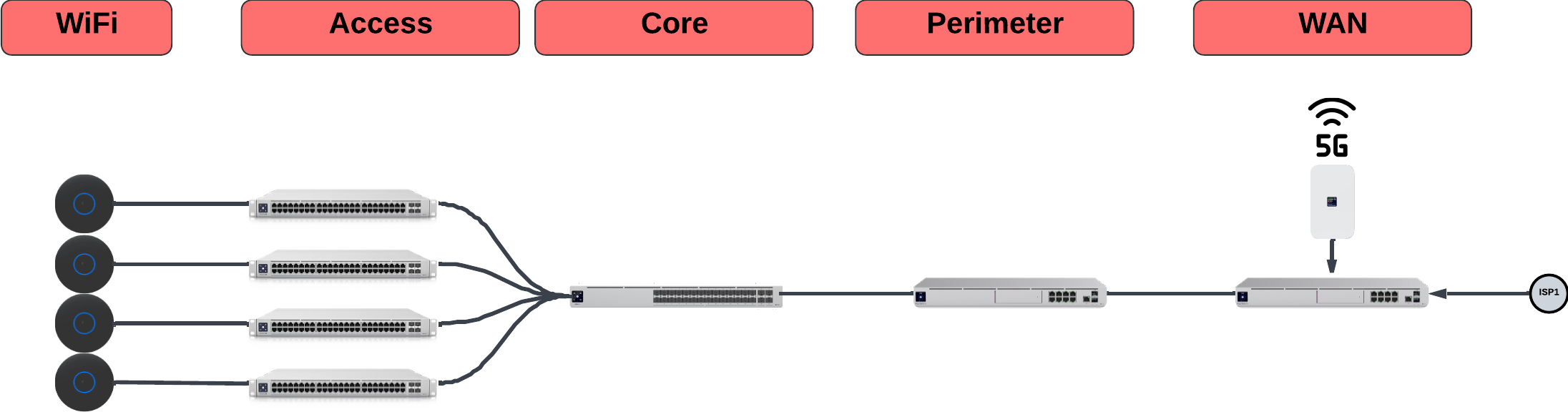

For smaller branches, sales outlets, external locations or offices with a lower criticality level, UniFi is often deliberately built much slimmer. This is one of the biggest economic advantages. Instead of rolling out the same heavy enterprise topology everywhere, the architecture is reduced to what is really needed at the location: a gateway, a compact access layer, access points and a simple, robust WAN design. Redundancy is then usually not set up at every internal level, but primarily at the Internet access - for example with an ISP and additional 5G backup.
This is highly attractive from a business perspective, especially for smaller locations: you get a very clean, centrally managed standard architecture without having to lug around an unnecessarily large number of devices, licenses and operational complexity. At the same time, the location remains centrally visible and controllable, while the local control plane remains on site. This combination of local resilience and centralized simplicity is one of the key reasons why UniFi is so attractive for distributed enterprise networks today.
UniFi is not a rigid system, but a design kit
In practice, this means that companies can use UniFi to scale as required between lean branch and fully redundant enterprise location. There is no forced model that treats every location the same. Instead, the main site can be built with core redundancy, HA perimeter and dual ISP, while smaller sites deliberately remain lean and only receive WAN redundancy via 5G.
This is exactly how site architecture should be planned: according to business impact, not manufacturer dogma.
This also makes UniFi strategically strong. Because you don't have to choose between "cheap" and "enterprise". You can deploy the same platform at different levels of maturity - standardized, traceable and very quickly reproducible.
With UniFi, security is not an accessory, but part of the design
A common misconception is that cost-efficient networks are necessarily functionally or security-wise slimmed down. This is precisely not the case with UniFi. UniFi today supports a Zone-Based Firewall, which allows VLANs, WANs and VPNs to be grouped into zones and the traffic flows between these zones to be centrally controlled. In addition, UniFi offers application filtering, policy-based routing and other traffic management functions.
This is particularly important in multi-site and hybrid environments, as it allows both north-south and east-west traffic to be properly controlled.
For site networking, UniFi also provides a very simple SD-WAN model with Site Magic. This is an enormous lever, especially for companies with many sites, because site coupling no longer has to be a complex special project.
Microsegmentation: not a buzzword, but a practical tool
UniFi is particularly strong where segmentation not only has to work on paper, but also in practice. At gateway level, VLANs can be separated from each other via zone-based firewalling. For simpler scenarios, Network Isolation is also available as a one-click variant. At switch level, ACLs are added that can control traffic within or between VLANs. And at WiFi level, clients on the same access point can be isolated directly from each other.
In addition, UniFi supports mechanisms with which different user or device types can be dynamically segmented into different networks despite sharing the same radio cell. This is precisely why UniFi is very well suited in practice for environments with IoT and OT components.
If you can combine VLAN-to-VLAN communication, device isolation within the same network, WiFi client isolation and dynamic SSID segmentation, you get a very strong foundation for cleanly separating machines, sensors, cameras, external companies, office users and guests - without creating an unnecessarily heavy design.
Why this is so exciting for OT environments in particular
OT-related networks need three things above all: clarity, stability and controlled communication. This is exactly where UniFi's architectural advantages come into play. You can define dedicated VLANs for equipment, SCADA-related systems, cameras, access, printers, office IT and guests, separate them from each other using zone-based firewalls or ACLs and also isolate devices on the WiFi within the same radio segment from each other.
In other words: UniFi provides enough segmentation logic to also map more sophisticated security and operating models in a meaningful way - without automatically turning into a monolithic, expensive specialist network.
Site networking and rollout are deliberately kept simple with UniFi
Another major advantage is the operational speed. Standardized topologies, central administration and a simple adoption process reduce manual steps, accelerate rollouts and facilitate standardized deployments across many locations.
From our project experience, this means that a standardized location with around 200 employees can be set up in around one day. This is not because of magic, but because the platform allows for standardized topologies, central administration and very little friction in deployment. This is precisely what makes UniFi so economical for companies with many locations.
Costs: this is where the real leverage lies
Perhaps the biggest difference to classic network stacks lies in the cost-effectiveness. From our project experience, we often see cost savings of up to around 80 percent compared to classic architectures from Cisco, Aruba or Fortinet, depending on the use case - with very high performance per franc invested.
But something else is even more decisive: there are no traditional license costs for basic UniFi networking. This fundamentally changes the calculation. You don't just save on hardware. You save on renewals, on recurring platform costs, on operational complexity, on multi-vendor overhead within the same network domain and on the time your teams have to spend on rollout, changes and troubleshooting.
That's why UniFi is not only affordable to purchase, but often significantly less expensive over the entire lifecycle.
Enterprise support without enterprise baggage
A common misconception is that cost-efficient platforms automatically have no professional support. Here, too, it is worth taking a differentiated look. Professional support and maintenance models are possible - including 24/7 support and hardware RMA. At the same time, operations can of course also be handled entirely by Rheintec as an integrator and managed service partner.
In practical terms, this means that you do not have to choose between "low-cost" and "professionally operable". You can use UniFi very economically and still build a resilient operating model - with manufacturer options, with partner support or with both.
Why this approach is a perfect fit for Rheintec
Rheintec deliberately pursues a best-of-breed approach and the philosophy "Simple, Secure, Effective". This is exactly why UniFi fits so well into our portfolio: as an extremely cost-efficient, easy-to-operate and at the same time very powerful network platform for modern enterprise environments.
This is relevant for customers because it's not just about selling hardware, but about clean target architectures: Which locations are built with full redundancy? Which ones are deliberately lean? Where is 5G the right backup strategy? Where do we need micro-segmentation? And how do you connect the whole thing cleanly with SASE, SSE or Zero Trust models?
This is where the real added value arises.
Conclusion
This is how to deploy UniFi correctly: not dogmatically, but with architectural awareness. Large, critical locations are given a fully redundant design with multiple redundancy levels. Small sites get a deliberately lean, economical standard architecture with WAN resilience. Almost any configuration is possible in between.
The platform provides the right building blocks for this: High Availability, Zone-Based Firewall, Site Magic SD-WAN, Policy-Based Routing, Client Isolation, VLAN segmentation, centralized management and a license-free operating model.
This is precisely why UniFi is so interesting for companies today: not because it is only cheap - but because it makes good architecture simpler and more affordable.
